Alloy Steel Sling Connector

SLR001-G80 SLING CONNECTOR

Features
● It is forged by special alloy steel with high intensity and high toughness, and then it is heat treated;
● It can be matched with sling and G80 chains which can meet the standard EN818-2;
● Each workpiece should pass testing at 2.5 times of working load limit;
● We should carry out sampling and 20000 times of fatigue testing;
● We should carry out strict sampling and breakage testing for each batch of products;
● We should carry out 100% magnetic powder flaw detection;
● 100% of the pin should be tested to ensure that they have the same hardness;
● Surface treatment: plastics spraying.
● Color code: red RAL3020/yellow RAL1003.

Parameters (Unit: mm)

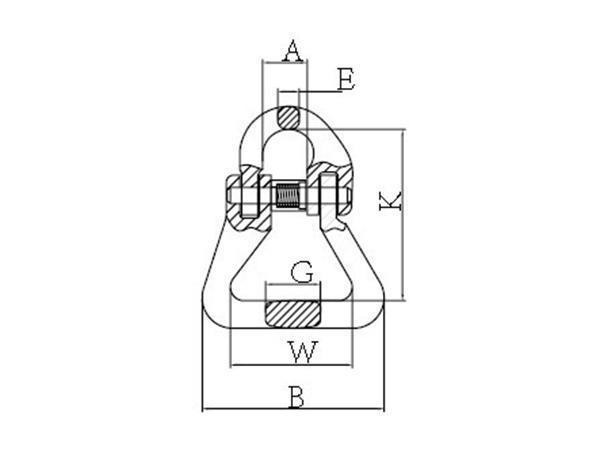

Item Code Weight (kg) Woring Load Limit (t) Breaking Load (t) A±1.5 B±2 K±2 W±2 G±1 E±1
8-SLR001-06 0.2 1.12 4.48 15 60 56 40 18 7
8-SLR001-7/8 0.3 2.0 8.0 20 61.5 63.7 40 24 9.5
8-SLR001-10 0.68 3.15 12.6 24 66 83 39 30.5 11
8-SLR001-13 1.47 2.3 21.2 28 88 93.7 55 36.8 16.5
8-SLR001-16 2.3 8 32 34.5 108 120 65.5 45.2 19.8
8-SLR001-20 3.3 12.5 50 41 129 138 80 51.8 23
8-SLR001-22 6.89 15 60 50 191 180 126 70 26
8-SLR001-26 10.62 21.2 84.8 58 228.4 209.5 152 86 30
8-SLR001-32 18.92 31.5 126 72.5 252 279 160 91 55

Ultimate load is 4 times the Working Load Limit.

SP-SLR001 TYPE A -SLEEVE AND LOAD PIN (SINGLE SLEEVE)
Parameters (Unit: mm)
Item Code Size Item Code Size
SP-SLR001-6 6-8 SP-SLR001-20 20-8
SP-SLR001-7/8 7/8-8 SP-SLR001-22 22-8
SP-SLR001-10 10-8 SP-SLR001-26 26-8
SP-SLR001-13 13-8 SP-SLR001-32 32-8
SP-SLR001-16 16-8

SP-SLR001 TYPE B -SLEEVE AND LOAD PIN (DOUBLE SLEEVE)
Parameters (Unit: mm)
Item Code Size Item Code Size
SP-SLR001-6 6-8 SP-SLR001-20 20-8
SP-SLR001-7/8 7/8-8 SP-SLR001-22 22-8
SP-SLR001-10 10-8 SP-SLR001-26 26-8
SP-SLR001-13 13-8 SP-SLR001-32 32-8
